Methods for reproducible computational research

David Wright

What we’ll cover today

• The current issues and motivation
• Practices and design to boost reproducibility
• Tools for reproducible research

The issue

Replication crisis

“If it’s not reproducible, it’s not science.”

• A large fraction of researchers face issues or outright fail when they try to reproduce their peers’ work — the “Replication Crisis”
• This isn’t just limited to computational research
• However, the issue has been accelerated by ever-increasing computational resources that enable increasingly complex methods and data analyses

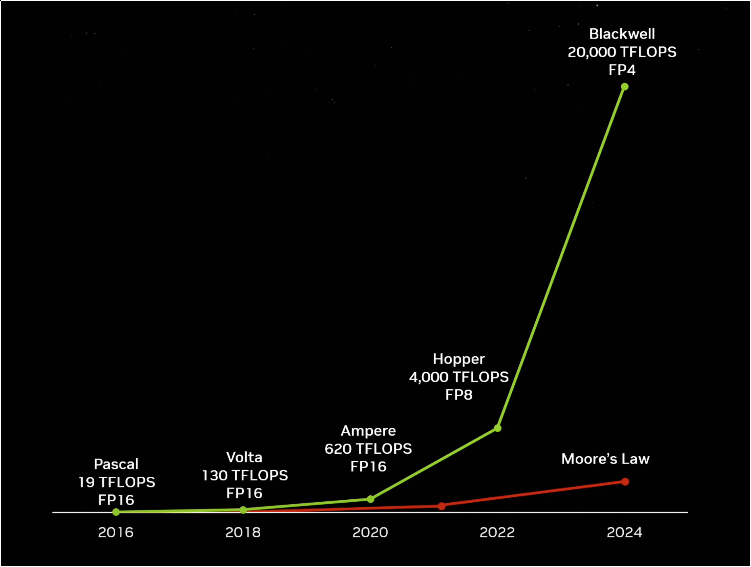

Moore’s Law is dead

Reproducible practices and design

Reproducible practices

What can you do day-to-day?

1. Keep a digital lab notebook

• How?

Digital lab notebook

• This should be plain text—it will outlive you
• One notebook per project is the easiest way to organize
• Treat it like an actual lab notebook. Make entries whenever you enter “the lab”
• Write down what you’re working on, problems you’ve solved, input parameters for simulations you’re running, links to resources you’ve used, etc.

Example lab notebook entry

* [2022-05-12 Thu 17:02] Making new exo root image :exo:
:LOGBOOK:
CLOCK: [2022-05-12 Thu 18:02]--[2022-05-12 Thu 19:02] =>  1:00
:END:

Use disk sa12fb

Delete all partitions using fdisk.

Make new partitions

Create a partition table and partition accordingly.
New root disk is at /dev/sdb

> parted /dev/sdb
> mktable msdos
>> mkpart primary 0G -40G
>> mkpart primary -40G 100%
>> align-check optimal 1
>> align-check optimal 2
>> quit
> mkfs.ext4 -L sa12fb1 /dev/sdb1
> mkswap -L sa12fb2 /dev/sdb2

OUT:[2022-05-12 Thu 19:02]

Reproducible history

• You should be using version control software
• git is a reasonable choice
  • If you’re version controlling larger artifacts, there are other options we’ll discuss later
• Version control your lab notebook(s) as well
• Upload your git repositories to a git forge like GitHub or GitLab for collaboration

# Example usage
git add my-file.txt
git commit -m "fix: update my-file"

Reproducible by design

• Design your pipelines and packages with reproducibility in mind
• A good example of thoughtful design: BART

• Copies all inputs into output directory
• Stores metadata that helps reproduce the run, like the software version, CPU architecture, etc.
• See also Event hoRyzen

Tools for reproducibility

Reproducible history (again)

• git + zenodo
• zenodo is an immutable data storage service
• Issued a DOI for each record
• Automatic record creation from GitHub releases
• Example record: PTArcade

Reproducible artifacts

• Again, zenodo!
• 50GB limit per artifact, but you can request more
• Example: MCMC chains from a gravitational wave astrophysics paper

Reproducible environments

• This is a very crowded space with many tools aiming to accomplish the same thing
• I’ll focus on Python environments
• We’ll look at container and non-container solutions

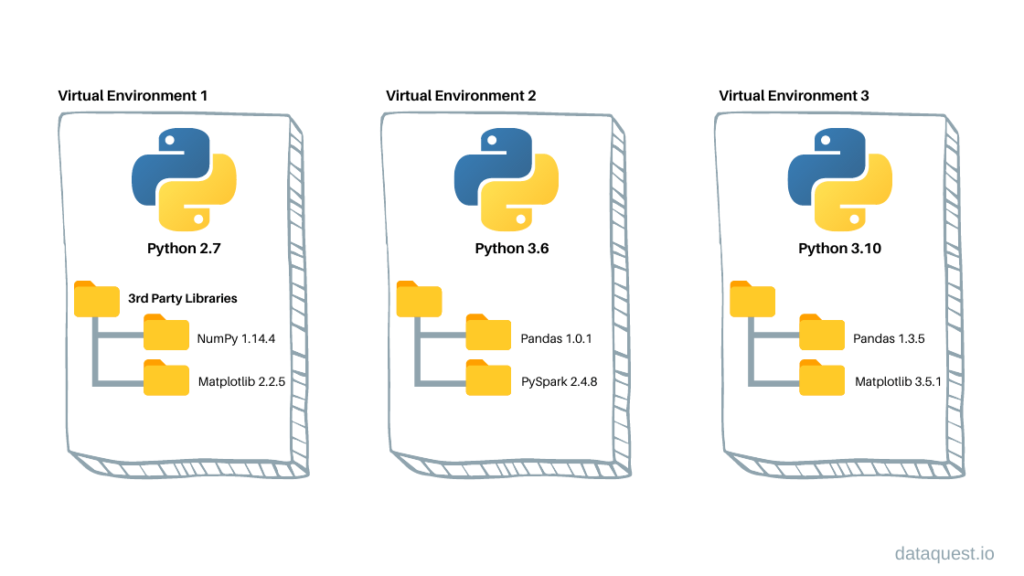

Reproducible environments without containers

• The most basic step towards a reproducible environment is to create a virtual environment

python -m venv my-venv
source my-venv/bin/activate

Reproducible environments without containers (cont.)

• Once you’re in the virtual environment, you can use pip as usual

pip install numpy scipy matplotlib

• We can freeze and export our environment to a requirements file

pip freeze > requirements.txt
cat requirements.txt

contourpy==1.3.3
cycler==0.12.1
fonttools==4.59.0
kiwisolver==1.4.8
matplotlib==3.10.3
numpy==2.3.2
packaging==25.0
pillow==11.3.0
pyparsing==3.2.3
python-dateutil==2.9.0.post0
scipy==1.16.1
six==1.17.0

Reproducible environments without containers (cont.)

• Using a requirements.txt file, we can recreate an environment

python -m venv my-new-venv
source my-new-venv/bin/activate
pip install -r requirements.txt

• Now, I can run pip list in both environments to verify that we have the same packages installed.

source my-venv/bin/activate
pip list

Package         Version
--------------- -----------
contourpy       1.3.3
cycler          0.12.1
fonttools       4.59.0
kiwisolver      1.4.8
matplotlib      3.10.3
numpy           2.3.2
packaging       25.0
pillow          11.3.0
pip             24.3.1
pyparsing       3.2.3
python-dateutil 2.9.0.post0
scipy           1.16.1
six             1.17.0

source my-new-venv/bin/activate
pip list

Package         Version
--------------- -----------
contourpy       1.3.3
cycler          0.12.1
fonttools       4.59.0
kiwisolver      1.4.8
matplotlib      3.10.3
numpy           2.3.2
packaging       25.0
pillow          11.3.0
pip             24.3.1
pyparsing       3.2.3
python-dateutil 2.9.0.post0
scipy           1.16.1
six             1.17.0

Reproducible environments without containers (cont.)

• Most researchers using Python are using Conda
• Conda environments by themselves are not exactly reproducible!
• We need exact versions, platforms, etc.
• One tool that does this is conda-lock

# generate a multi-platform lockfile
conda-lock -f environment.yml -p osx-64 -p linux-64

# optionally, update the previous solution, using the latest version of
# pydantic that is compatible with the source specification
conda-lock --update pydantic

# create an environment from the lockfile
conda-lock install [-p {prefix}|-n {name}]

# alternatively, render a single-platform lockfile and use conda command directly
conda-lock render -p linux-64
conda create -n my-locked-env --file conda-linux-64.lock

Reproducible environments without containers (cont.)

• Conda is ok, but it’s not great

• A newcomer to environment management is Pixi

• Supports multiple languages including Python, C++, and R using Conda packages

• Compatible with Linux, Windows, macOS (including Apple Silicon)

• Always includes an up-to-date lock file

• Allows you to install tools per-project or system-wide

• Entirely written in Rust and built on top of the rattler library

Reproducible environments without containers (cont.)

• Pixi environments (and more) are configured through the standard pyproject.toml configuration file, with support for PyPI and conda-forge

[project]
name = "my_project"
requires-python = ">=3.9"
dependencies = [
    "numpy",
    "pandas",
    "matplotlib",
]


[tool.pixi.project]
channels = ["conda-forge"]
platforms = ["linux-64", "osx-arm64", "osx-64", "win-64"]

[tool.pixi.dependencies]
jax = "*"

Pixi lockfile

version: 5
environments:
  default:
    channels:
    - url: https://conda.anaconda.org/conda-forge/
    indexes:
    - https://pypi.org/simple
    packages:
      linux-64:
      - conda: https://conda.anaconda.org/conda-forge/linux-64/_libgcc_mutex-0.1-conda_forge.tar.bz2
packages:
- kind: conda
  name: _libgcc_mutex
  version: '0.1'
  build: conda_forge
  subdir: linux-64
  url: https://conda.anaconda.org/conda-forge/linux-64/_libgcc_mutex-0.1-conda_forge.tar.bz2
  sha256: fe51de6107f9edc7aa4f786a70f4a883943bc9d39b3bb7307c04c41410990726
  md5: d7c89558ba9fa0495403155b64376d81
  license: None
  purls: []
  size: 2562
  timestamp: 1578324546067

Reproducible environments with containers

• Docker and Apptainer (Singularity) are the dominant choices for containerized environments
• These are great! “Works on my machine” -> Package up your machine

Example Dockerfile

FROM python:3.12
WORKDIR /usr/local/app

# Install the application dependencies
COPY requirements.txt ./
RUN pip install --no-cache-dir -r requirements.txt

# Copy in the source code
COPY src ./src
EXPOSE 5000

# Setup an app user so the container doesn't run as the root user
RUN useradd app
USER app

CMD ["uvicorn", "app.main:app", "--host", "0.0.0.0", "--port", "8080"]

Reproducible environments with containers (cont.)

• However, containers are also not exactly reproducible!
  • Base image may update, dependencies may change, etc.
• Reproducible container builds
• Latest versions of Debian support installing from a snapshot

# Base image must be Debian 13 (trixie) or later: https://salsa.debian.org/apt-team/apt/-/merge_requests/291
FROM debian:trixie-20230904-slim
ENV DEBIAN_FRONTEND=noninteractive
RUN \
  --mount=type=cache,target=/var/cache/apt,sharing=locked \
  --mount=type=cache,target=/var/lib/apt,sharing=locked \
  : "${SOURCE_DATE_EPOCH:=$(stat --format=%Y /etc/apt/sources.list.d/debian.sources)}" && \
  snapshot="$(/bin/bash -euc "printf \"%(%Y%m%dT%H%M%SZ)T\n\" \"${SOURCE_DATE_EPOCH}\"")" && \
  : "Enabling snapshot" && \
  sed -i -e '/Types: deb/ a\Snapshot: true' /etc/apt/sources.list.d/debian.sources && \
  : "Enabling cache" && \
  rm -f /etc/apt/apt.conf.d/docker-clean && \
  echo 'Binary::apt::APT::Keep-Downloaded-Packages "true";' >/etc/apt/apt.conf.d/keep-cache && \
  : "Fetching the snapshot and installing ca-certificates in one command" && \
  apt-get install --update --snapshot "${snapshot}" -o Acquire::Check-Valid-Until=false -o Acquire::https::Verify-Peer=false -y ca-certificates && \
  : "Installing gcc" && \
  apt-get install --snapshot "${snapshot}" -y gcc && \
  : "Clean up for improving reproducibility (optional)" && \
  rm -rf /var/log/* /var/cache/ldconfig/aux-cache

Reproducible pipelines

• What if our work has multiple (in)dependent steps?
• We can define our pipeline as code

# Pixi tasks
[tasks]
# Commands as lists so you can also add documentation in between.

configure = { cmd = [
    "cmake",
    # Use the cross-platform Ninja generator
    "-G",
    "Ninja",
    # The source is in the root directory
    "-S",
    ".",
    # We wanna build in the .build directory
    "-B",
    ".build",
] }

# Depend on other tasks
build = { cmd = ["ninja", "-C", ".build"], depends-on = ["configure"] }

# Using environment variables
run = "python main.py $PIXI_PROJECT_ROOT"
set = "export VAR=hello && echo $VAR"

# Cross platform file operations
copy = "cp pixi.toml pixi_backup.toml"
clean = "rm pixi_backup.toml"
move = "mv pixi.toml backup.toml"

Reproducible pipelines (cont.)

• What if we need something more advanced?
• Use Snakemake
• Snakemake uses a DSL built on Python to define a pipeline as code
• Specify inputs/outputs, dependencies, etc. and Snakemake builds a DAG for your pipeline
• Snakemake will cache steps in your pipeline and only run them again when it needs to

rule select_by_country:
    input:
        "data/worldcitiespop.csv"
    output:
        "by-country/{country}.csv"
    conda:  # Integrates with conda
        "envs/xsv.yaml"
    shell:
        "xsv search -s Country '{wildcards.country}' "
        "{input} > {output}"

showyourwork
